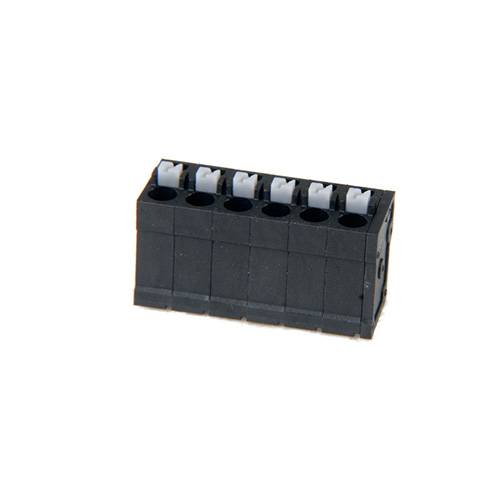

? Pitch：5.0mm，Electrical：UL，Rated Voltage：300V，Rated Current：5A，colour：black ;
? Most spring PCB terminal blocks are assembled piece by piece ;
? The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。
→ Pitch：5.0mm
→ Electrical：UL
→ Rated Voltage：300V
→ Rated Current：5A
→ Wire Diameter Range（AWG/mm2）：28-16/0.2-1.5
→ Operating Temperature Range：-40℃~+105℃
→ Withstand Voltage: AC1600V/1min
→ Strip Length：8-12mm
| Datasheet | |
|---|---|
 |
| Material and Finish | |
|---|---|
| Hosuing | PA66 UL94V-0 |
| Electric conductor | Red Copper，Tin-plated |
| Fastening piece Screw/Spring | Stainless Steel |
| Fastening piece Cage/Nut | - |
| Electric Characteristics | UL | IEC |
|---|---|---|
| Rated Voltage | 300V | 320V |
| Rated Current | 5A | 10A |
| Withstand Voltage | AC1600V/1min | |
| Impulse Withstand Voltage | 4KV | |
| Connection Characteristics | |
|---|---|
| Wire Diameter Range（AWG/mm2) | 28~16/0.2~1.5 |
| Strip Length | 8-12mm |
| Torque | - |
| Operating Temperature Range | -40℃~+105℃ |
| Order Number | |
| Package Unit | |
| MOQ | |
Product Weight (Excluding Package) |
