? Pitch：7.5mm，Electrical：UL，Rated Voltage：300V，Rated Current：10A，colour：green ;
? In order to meet the requirements of different application, we can offer the choices of horizontal, vertical , same direction wiring connection and etc ;
? The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。

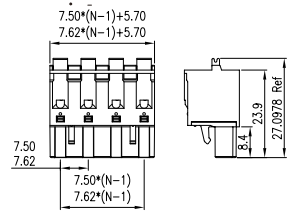

→ Pitch：7.5mm
→ Electrical：UL
→ Rated Voltage：300V
→ Rated Current：10A
→ Wire Diameter Range（AWG/mm2）：26-12/0.2-2.5
→ Operating Temperature Range：-40℃~+105℃
→ Withstand Voltage: AC1600V/1min
→ Strip Length：10-11mm
| Datasheet | |
|---|---|
 |
| Material and Finish | |
|---|---|
| Hosuing | PA66 UL94V-0 |
| Electric conductor | Copper Alloy, Tin-plated |
| Fastening piece Screw/Spring | Steel |
| Fastening piece Cage/Nut | - |
| Electric Characteristics | UL | IEC |
|---|---|---|
| Rated Voltage | 300V | 630V |
| Rated Current | 10A | 15A |
| Withstand Voltage | AC1600V/1min | |
| Impulse Withstand Voltage | 6KV | |
| Connection Characteristics | |
|---|---|
| Wire Diameter Range（AWG/mm2) | 26-12/0.2-2.5 |
| Strip Length | 10-11mm |
| Torque | - |
| Operating Temperature Range | -40℃~+105℃ |
| Order Number | |
| Package Unit | |
| MOQ | |
Product Weight (Excluding Package) |
